Cattle Yard

Cattle fence also called horse corral panel, corral fence, livestock corral fence, is a type of tube fence panel, which is widely used in the farm, pasture and filed.

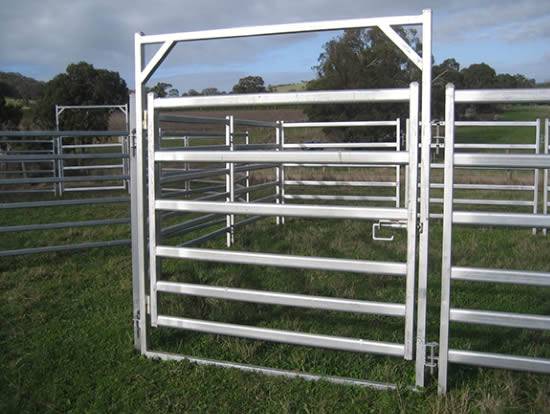

Cattle panel 2100x1800mm

  • 50x50x1.6mm Pre-gal Pipe
  • 80x40mmx1.6mm or 60x30x1.6mmPre Gal Oval Pipe zinc coated 120g/m2
  • Spe. 2100x 1800mm

Cattle gate

  • 60x30x1.6 Pre-gal Pipe.
  • 50x50x1.6mm Pre-gal Pipe.
  • Pre-Gal Oval Pipe.
  • Spe. 2100 Wx 2200mm H.

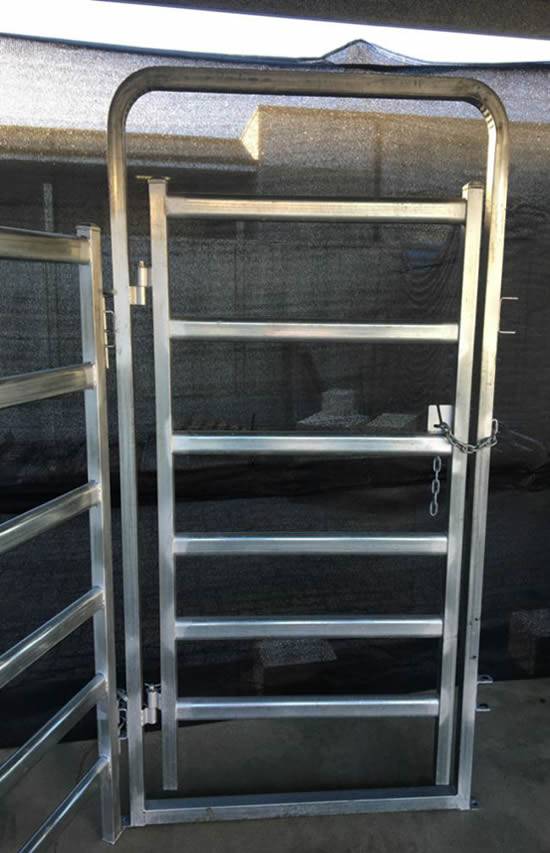

Cattle swing gate (Access/personel gate)

  • 60x30x1.6mm 80x40x1.6mm Pre-gal Pipe
  • 50x50x1.6mm Pre-gal Pipe
  • Pre-Gal Oval Pipe
  • Spe. 850mm Wx 2200mm H

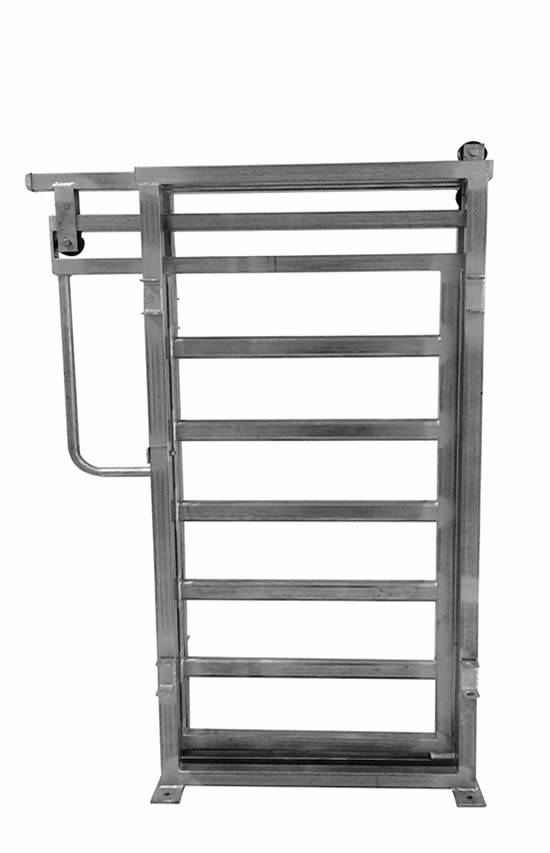

Cattle sliding gate

  • Two section included: outer frame + sliding gate
  • Outer frame overall size: 1159 x 1960mm
  • Sliding gate overall size: 1110 x 1785mm.
  • 32x2.0mmHDP
  • Totally 5 inner rails are made by 70 x 41 x 1.6mmPre-Gal oval pipe
  • Outer frame and sliding gate frame are made by50x50x1.6mm Pre-gal square tube

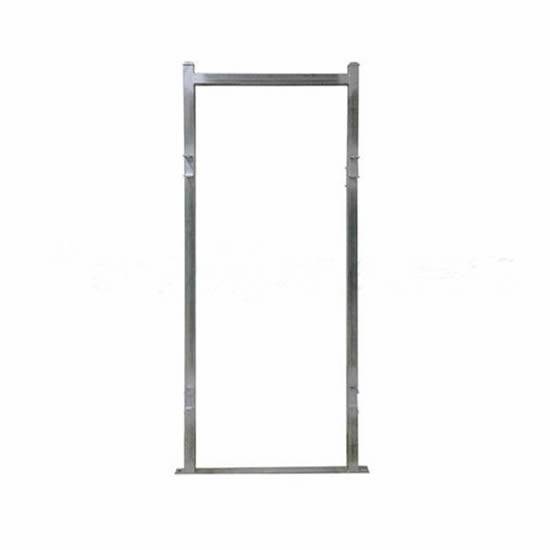

Cattle race bow

  • Overall size: 2100 x 950mm
  • Vertical Pipe 50 x 50 x 1.6mm
  • 8 C bracket are provided
  • The pipe are pre-galvanized

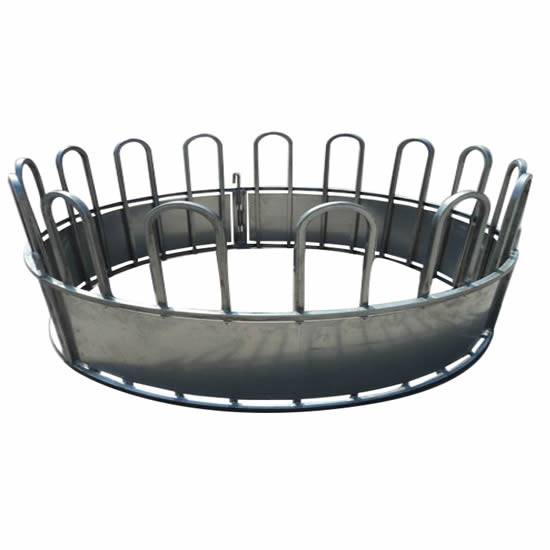

Cattle round hay feeder

  • 2m diametre, 30x30x2mm top, bottom and side
  • 3 sections, 5 bows per section, 25x25x2mm pipe
